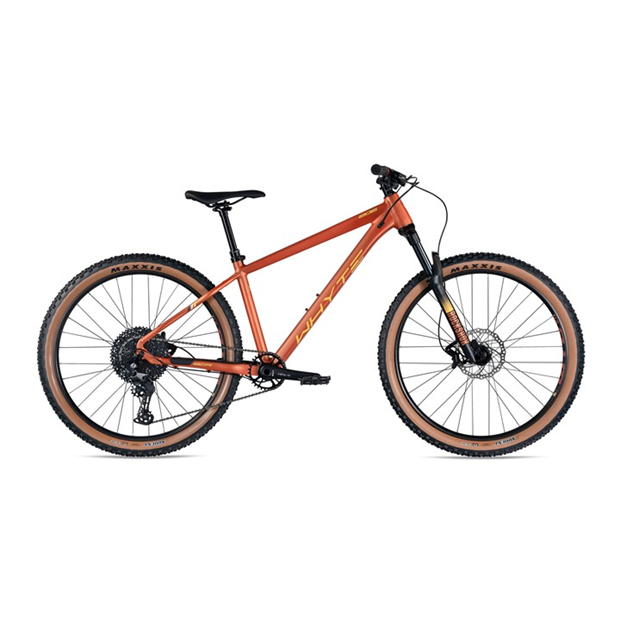

Whyte 806 Compact 2022 Mountain Bike

About the Whyte 806 Compact

Whyte Trail Hardtails are famous for agile， alert Total Geometry handling that sync you and the trail together perfectly， and the 806 Compact means smaller pilots can find their sweet spot now too.

They’ve downsized the fit while still keeping its trail attitude as addictively overachieving as ever and RockShox Recon fork， 4 pot brakes and Maxxis tyres are ready to crush the biggest challenges.

Key Features

• The MTB Geomentry that Whyte use to create their full size bikes is downsized and unaltered to allow more riders to experience our confidence inducing slack angles.


• RockShox Recon RL Fork with 120mm travel


• Realiable Shimano Deore 11 speed 1x Gearing with wide range 11-51 cassette

Specifications

Frameset

• Frame: 6061 Alloy， Hydro Formed T6 Aluminium， Multi Butted， SCR， Tapered Headtube， Get A Grip Seat Clamp System， Internal Cable Routing with BBX63 and Chainstay Post Mount Dropouts 12mm X 148mm Boost


• Fork: RockShox Recon RL 27.5， 120mm Travel， 37mm Offset， Solo Air， Fast Black Coating， Adjustable Rebound， Tapered Alloy Steerer， 110mm x 15mm Boost， Maxle Lite

Wheels

• Rims: WTB ST i27 TCS 2.0 System， Pinned Joint， Tubeless Ready， 32 Hole


• Hubs: Alloy， Double Sealed Cartridge Bearings， (R)10mm x 148mm (F)15mm x 110mm Boost Thru Axle， 32 Hole


• Tyres: Maxxis High Roller II TR 27.5x 2.4 60TPI， EXO Sidewall Protection， 3C Maxx Terra， Front， Maxxis Forekaster TR 27.5 x 2.35 60TPI， EXO Sidewall Protection， Dual Compound， Rear

Drivetrain

• Pedals: Fibre Reinforced Composite Platform


• Front Derailleur: N/A


• Rear Derailleur: Shimano Deore RD-M5100-SGS， Shadow Plus， 11 Speed


• Shifters: Shimano Deore SL-M5100， 10 Speed


• Chain: KMC NPBK 11 Speed


• Crankset: Whyte， Forged 2pcs Cranks， Direct Mount 32T Narrow/Wide Chainring， 170mm， 11 Speed


• Rear Cogs: SunRace CSMS8， ED Black， 11-51， 11 Speed

Components

• Handlebar: Whyte 6061 Alloy， 15mm Rise， 31.8mm， XS 740mm Wide， S/M 760mm Wide


• Stem: Whyte Alloy， 40mm Extension


• Brakes: Tektro HD-M535 ， 4 Piston， 180mm， 2.3mm gauge， 180mm Disc


• Brake Levers: Tektro HD-M535


• Saddle: Whyte Custom


• Seatpost: Whyte Drop.it， 30.9mm， XS/S 125mm， M 150mm Travel， Alloy Remote Lever

Bike Sizing

Choosing the bike size depends on the type of bike， your height， your riding style， and your preference. A correct fitting bike will be more comfortable， more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

Product code: 910519
